Hitachi RAID - Lightning 9900 V Specifications -


 Specifications Index

  > System Capacity
  > Control Frame
  > Array Frame
  > Hard Disk Drives (HDDs)
  > Physical Specifications
  > Operating System Support
  > CARE Software Solutions
  > Host Failover and Alternate Path Support

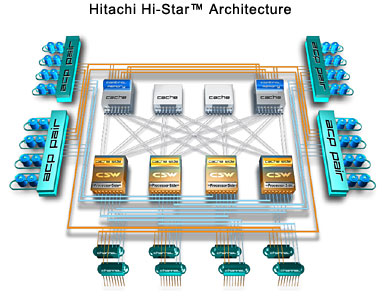

  > Hi-Star Architecture



 System Capacity
Models 9980V 9970V
Number of disk drives (with spares) 5 to 1024 5 to 128
Disk capacity
15,000RPM 36GB
10,025RPM 73GB
7,200RPM 181
Total raw capacity per subsystem 74.7TB 9.3TB
Maximum usable capacity for RAID-5
Open Systems 64.3TB 6.8TB
S/390®-compatible 61.1TB 6.4TB
Maximum usable capacity for RAID-1+
Open Systems 37TB 4.5TB
S/390®-compatible 34.6TB 4.2TB
Maximum number of RAID groups/subsystem
With 4 spares 31
With 8 spares 254
With 16 spares 252
Cache
Maximum 64GB 32GB
Minimum 4GB 2GB
Increments 4GB 2GB
Logical Device Support Up to 8,192

Back to top

 Control Frame
Models 9980V 9970V
Client-Host Channel Adapters (CHAs)
Number of CHIP pairs Up to 4 Up to 3
Simultaneous data transfers per CHIP pair 8
Physical interfaces per CHIP pair 8
Physical Interfaces per Subsystem
  Maximum 32 24
FICON® 0, 8, 16, 24, 32 0, 8, 16, 24
Extended Serial Adapters™† 0, 8, 16, 24, 32 0, 8, 16, 24
Fibre Channel (fiber-optic cable) 0, 8, 16, 24, 32 0, 8, 16, 24
Interface Speed (Fibre Channel) 2 Gbit/sec
Logical Paths per Subsystem
  Extended Serial Adapters Up to 8,192 Up to 6,144
Array Control Processor (ACP)
Number of ACP pairs per subsystem Up to 4 1or 2
Physical array paths per ACP pair 8
Maximum disks per array path 64 32
Simultaneous transfers per ACP pair
  To cache 8
  To disk array 8
Transfer rate
  Per disk array path Up to 100MB/sec
  Per ACP pair (to cache) Up to 800MB/sec
Hi-Star™ switched-fabric architecture
  Aggregate bandwidth (data) 10.6GB/sec 5.3GB/sec
  Aggregate bandwidth (control) 5.3GB/sec 2.6GB/sec

Back to top

 Array Frame
Models 9980V 9970V
Array frames per subsystem Up to 4 N/A
Spare drives per subsystem (standard) 1 per drive RPM installed
Spare drives per subsystem (maximum) 16 4

Back to top

 Hard Disk Drives
  73GB 36GB
GMR (Giant Magnetoresistive) Head Technology
Rotation Speed 10,025RPM 14,904RPM
Form Factor 3.5-inch LP
Media Diameter 3.0 in. 2.5 in.
Actuator Rotary
Servo System Digital
Interface FC-AL
Internal Transfer Rate
Inner Zone 44.2MB/sec 68.5MB/sec
Outer Zone 74.0MB/sec 88.3MB/sec
Average Seek Time
Read 4.9ms 3.8ms
Write 5.7ms 4.2ms

Back to top

 Physical Specifications
Models 9980V 9970V
Physical Specifications
  Control Frame Integrated Control & Array Frame
Height 1,860mm (73.2 in.)
Width (with two side panels) 782mm (30.77 in.)
Depth 800mm (31.5 in.)
Weight 553kg (1,216.6 lbs)* 796kg (1,751.2 lbs)**
Heat 2.17kW* 4.52kW**
Power 2.31kVA* 4.87kW**
Array Frame (one to four)
Height 1,860mm (73.2 in.)
Width (with two side panels) 750mm (29.5 in.)
Depth 800mm (31.5 in.)
Weight 755kg (1,661 lbs)***
Heat 6.61kW
Power 7.16kVA
* One controller, 64GB cache, 4 ACP pairs, 32 Fibre Channel ports.
** One full system, 32GB cache, 1 ACP pair, 24 Fibre Channel ports, and 128 disks.
*** One disk array frame, 256 disk drives, 18,371GB raw capacity using 73GB hard disk drives.

Back to top

 Operating System Support
Open Systems
Compaq® Tru64™ UNIX
HP-UX®
IBM® AIX®
Novell® NetWare®
Red Hat® Linux®
Sequent® DYNIX/ptx®
SGI™ IRIX®
Sun™ Solaris™
Windows® 2000
Windows NT®
Open VMS
S/390®
OS/390®
MVS/ESA®
MVS/XA®
TPF/MPLF
VM/ESA™
VM/XA
VM/HPO
VSE/ESA®
VSE/SP (4.1)

Back to top

 Hitachi Freedom Storage Software
Storage Area Management Suite
HiCommand™
Hitachi Resource Manager™
    Hitachi Graph-Track™
    Hitachi FlashAccess™
    Hitachi Virtual Logical Volume Image (VLVI) Manager
    Hitachi LUN Manager
    Hitachi SANtinel™
Hitachi Command Control Interface
Sun™ StorEdge™ Resource Management Suite
VERITAS® Volume Manager™
Business Continuity Suite
Hitachi TrueCopy
Hitachi NanoCopy™
Hitachi ShadowImage™
Hitachi Extended Remote Copy (HXRC)
Hi-Track®
Hitachi Dynamic Link Manager™
Geographically Dispersed Parallel Sysplex™ (IBM)
Data Protection Services
Backup and Recovery Suite
Hitachi Multiplatform Backup/Restore (HMBR)
Hitachi e-Copy
VERITAS NetBackup™
Tantia Technologies™ HARBOR® Backup
Performance Enchancement Suite
Hitachi CruiseControl™
Hitachi Priority Access
Hitachi FlashAccess
Hitachi Parallel Access Volume (HPAV)
Hitachi Graph-Track
Hitachi Dynamic Link Manager

Performance Maximizer Package
    Hitachi Performance Monitor
    Hitachi CruiseControl
    Hitachi Priority Access
Data Movement Suite
Hitachi RapidXchange™
Data Protection Services
Tantia Technologies HARBOR File Transfer

Back to top

 Host Failover and Alternate Path Support
  Host Failover Alternate Path
HP-UX® MC/ServiceGuard HP-UX/Logical Volume Manager
Sun Solaris™ VERITAS Cluster Server™ VERITAS VxVM Hitachi Dynamic Link Manager
AIX® HACMP Hitachi Dynamic Link Manager
Windows NT/2000® MSCS Hitachi Dynamic Link Manager
Compaq® Tru64™ UNIX TruCluster™ LMS
Sequent® ATAP Sequent proprietary software

Back to top

Back to top
