TLS-8000 Series Tape Libraries

TLS8000 Series Tape Libraries

TLS-8000 Tape Library Systems
featuring LTO UltriumTM Drives

SANSMART™ Fibre Channel

Product Description:

The TLS-8000 Series offers superior performance and value for LTO Ultrium tape users. With capacities from 2.2 TB to over 105 TB, the TLS-8000 Series economically and reliably automates tape-based applications, whether backing up a single server or as an integral part of an enterprise-wide storage management solution.

The TLS-8000 family comprises six models, providing a broad range of cost-effective solutions. Housing one to eight LTO Ultrium technology tape drives and up to 264 tapes. TLS-8000 multi-drive library models readily support concurrent reading and writing at data transfer rates exceeding 800 Gigabytes per hour to meet the throughput needs of today’s rapidly-growing networks.

The SANSmart Fibre Channel Option supports LAN-free and serverless backup using the latest 2Gb SAN technologies. Direct Fiber Attach (DFA) LTO 2 drives are now available to maximize SAN throughput by connecting each drive to its own port.

All TLS-Series libraries are available with Q-Link™, a web browser accessed remote library manager that enables administrators to configure, upgrade, and monitor any TLS-Series tape library via a company intranet or over the internet from anywhere in the world. Q-Link extends the library’s comprehensive front panel menu system and adds additional functionality such as automatic e-mail notification based on rules set by the administrator, and firmware updates can be implemented remotely.

Developed for the RLS-Series libraries, VIOP is now incorporated in every TLS model. An exclusive design feature, VIOP, Variable I/O Port, allows users to match the number of I/O slots to their operational requirements. Applications are not constrained by limits imposed by libraries with a fixed number of I/O slots. Users can assign the number of slots to best match their requirements. VIOP compliments the hardware I/O Ports which continue to be included or available in all models.

Logical Library is built into every TLS-Series SCSI library. It allows up to four servers to share a single library via a SCSI interface, even if each server is running a separate application. Systems that you couldn’t afford to upgrade can now be protected automatically. Support for multiple SCSI busses is also built-in to maximize throughput in direct-attach architectures.

The TLS-8000 Series also offers advanced features such as Logical LibrarySM, barcode scanning of tape cartridges, and an I/O Port is included in several models for importing and exporting individual tapes under application control.

All electrical and mechanical adjustments have been eliminated for easy installation and enhanced reliability. Tape drive reliability is improved by providing individual fans for each Ultrium drive to insure proper cooling. Filtered, positive air pressure is maintained throughout the library to reduce contamination.

Providing built-in capacity and performance growth is a hallmark of all TLS-Series automation families. All drive bays are pre-wired: users can easily install additional tape drives for increased throughput. Field upgrade kits are also available to double the tape capacity of some models.

Note: The TLS-Series are also available in AIT, DLT/Super-DLT and Super-AIT formats.

Features & Benefits:

Feature Benefit
Up to eight LTO Ultrium tape drives High throughput; supports concurrent read and write
Direct Fiber Attach (DFA) LTO 2 tape drives Individual fibre channel connections to the SAN
Q-Link Web browser based remote library manager
Wide capacity range Common format throught the enterprise
Automatic alignment No special tools or procedures
Logical Library Partitioning (SCSI only) Supports up to four separate partitions.
No electrical or mechanical adjustments Easy, fast installation
Barcode scanner Fast media inventory
I/O Port Application controls tape inventory
VIOP Bulk Tape import/export
Positive-pressure, filtered air system Reduces contamination, protects media
Individual drive cooling fans Enhanced drive reliability
Brushless motors Exceptional reliability

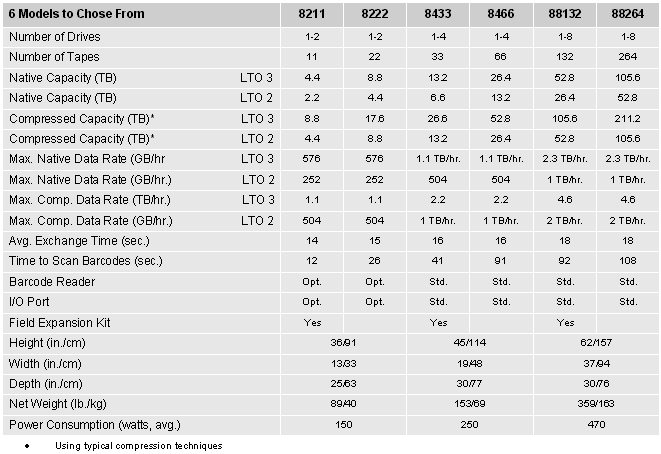

Drive Specifications

Additional Features:

  • Individual Fans for Each Tape Drive
  • Positive Filtered Air Pressure
  • All Leadscrew Driven
  • Self-calibrating, Digital Servo Control System
  • Lockable Front Door for Media Security
  • Inventory Sentry™ Minimizes Offline Time

Menu Control System:

  • 80-Character, Back-lit Display
  • Easy Setup, Configuration and Operation and Diagnostics
  • Built-in Emulations
  • Host-controlled Security Lockout
  • Downloadable Firmware Update

General Specifications:

  • Interface: LVD/SE SCSI
  • Voltage: 100-120, 220-240 VAC
  • Frequency: 48-62 Hz
  • MEBF: > 1,000,000 Exchanges
  • MTTR: < 30 minutes
  • Warranty: 3 Years
